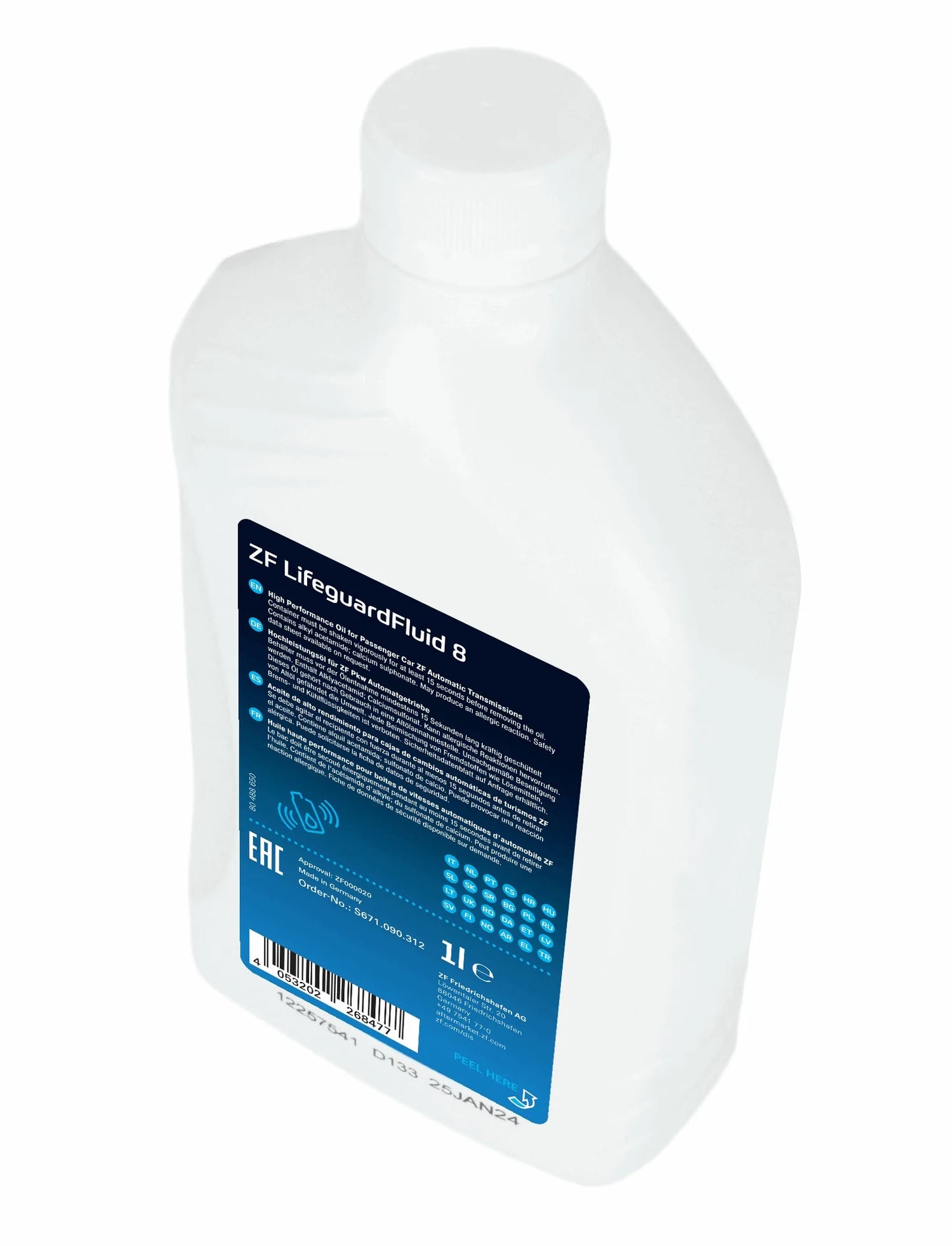

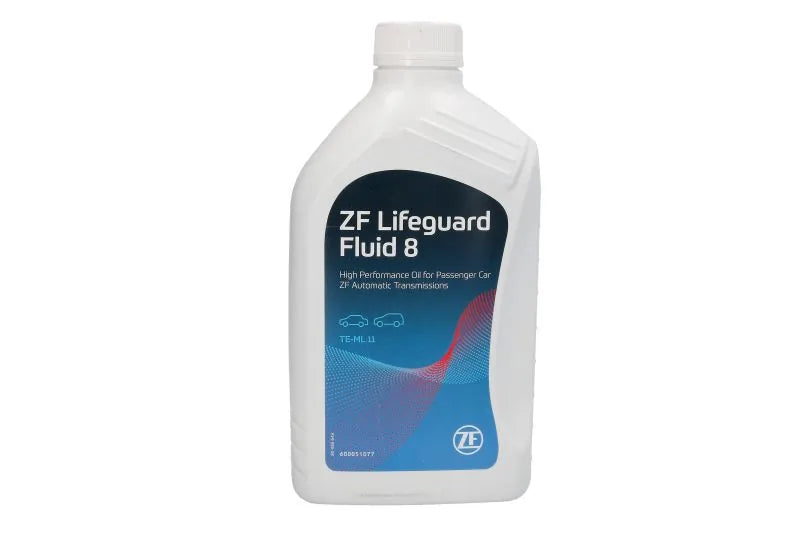

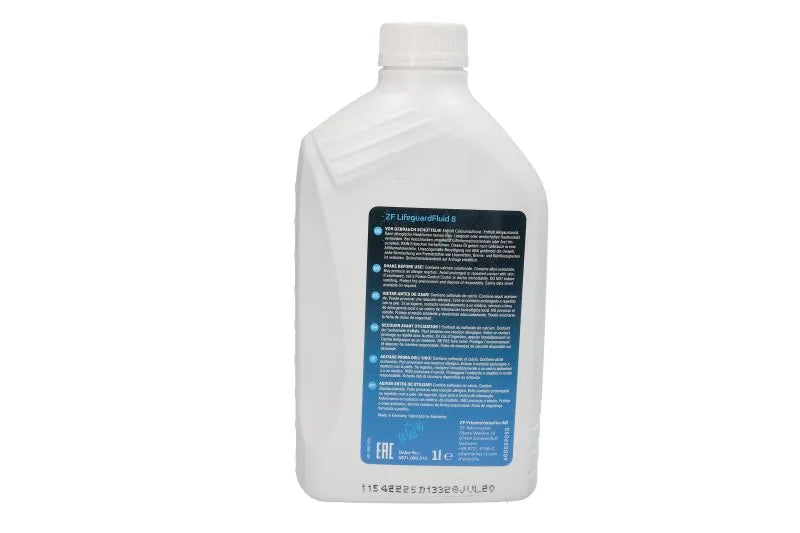

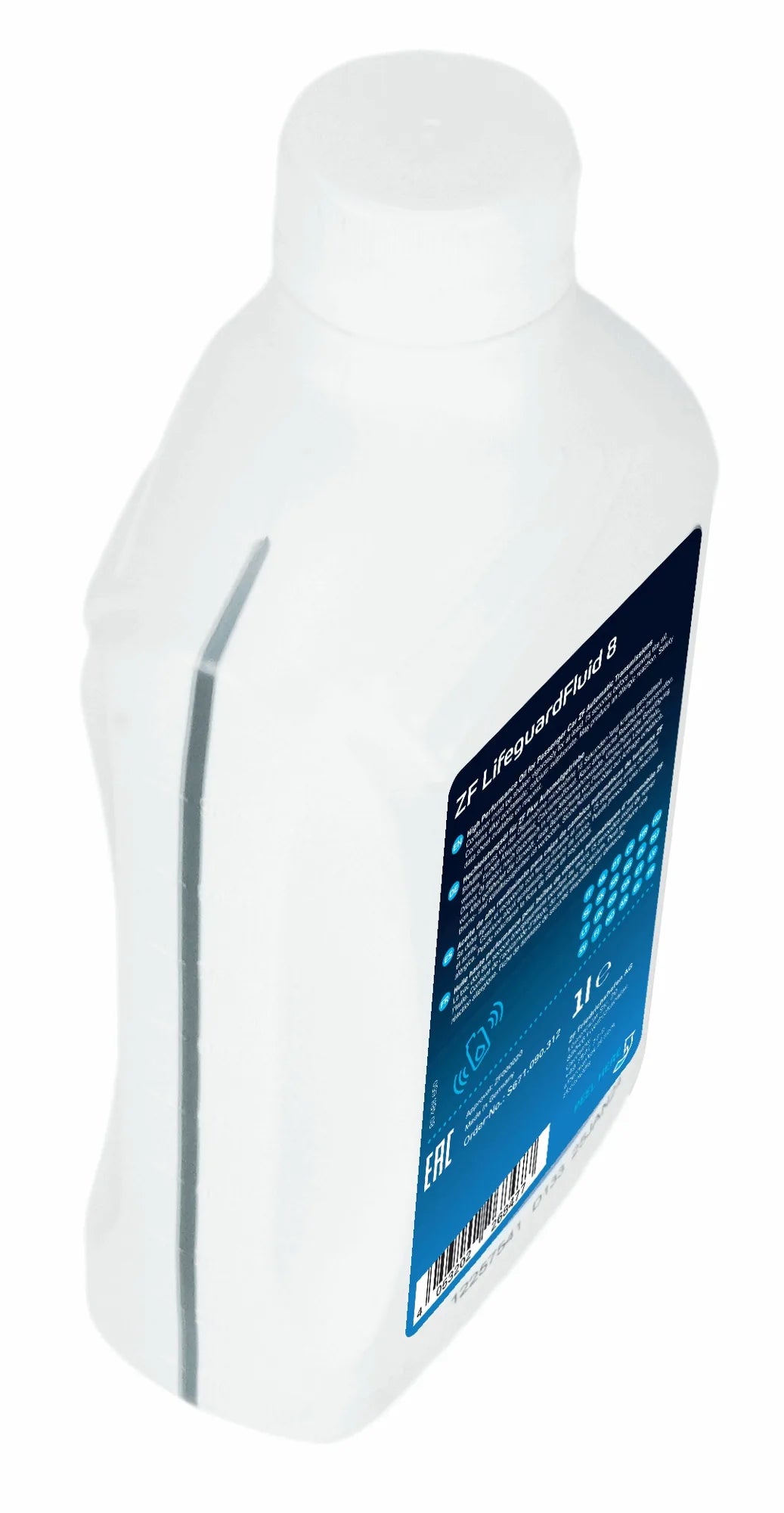

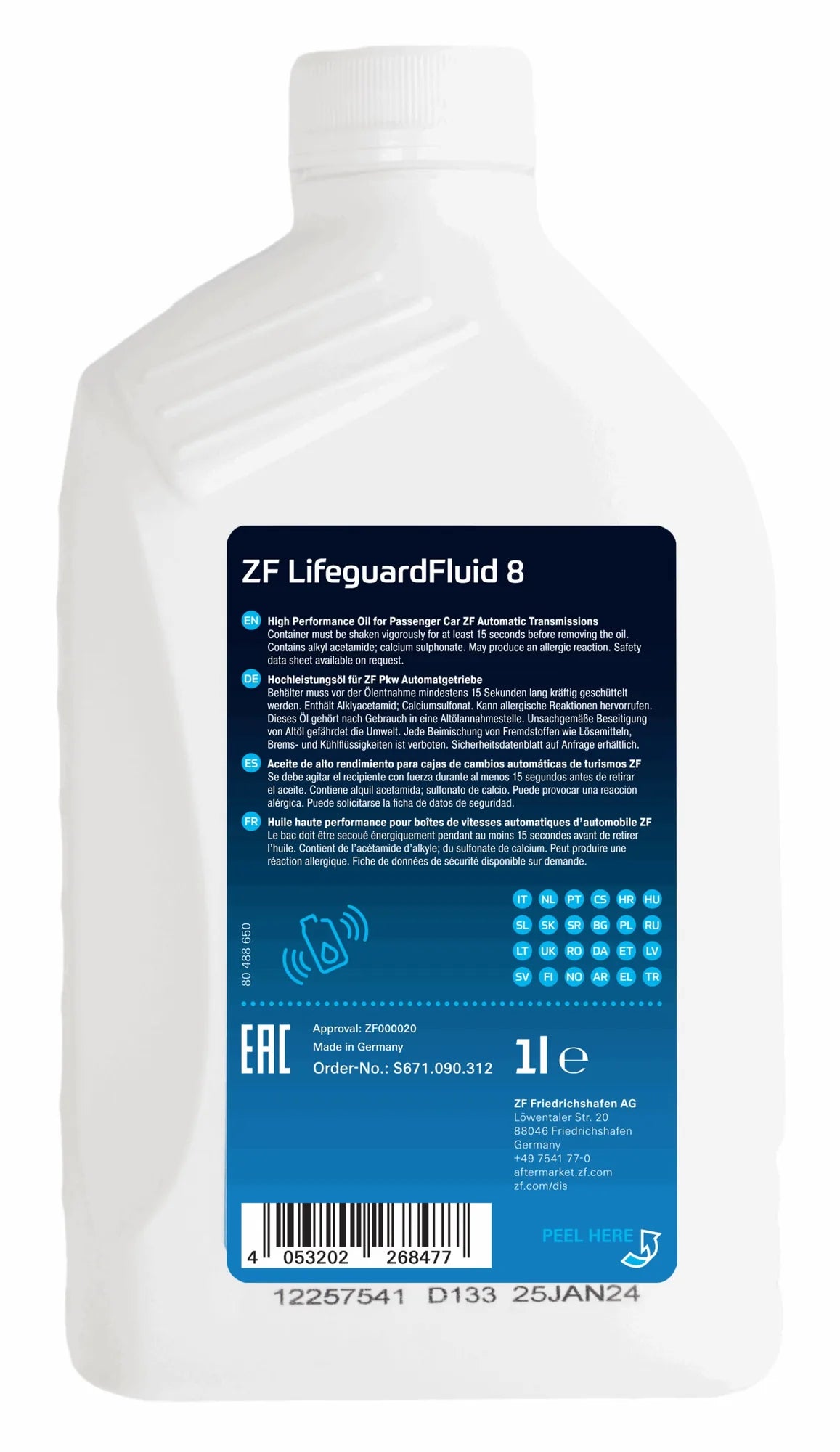

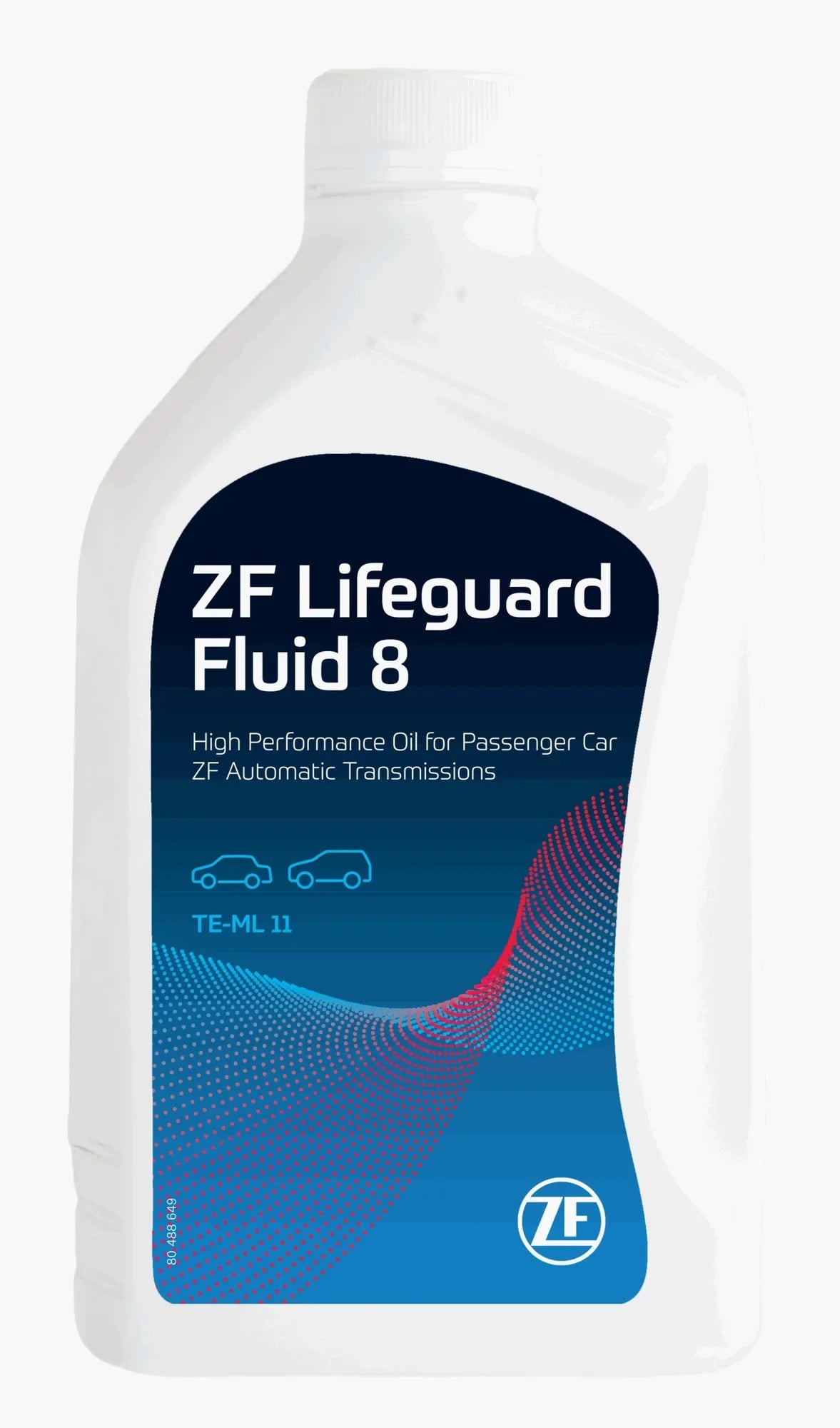

ZF LIFEGUARD 8 – Original Transmission Fluid for 8HP Gearboxes

ZF LIFEGUARD 8 – Automatic Transmission Fluid (ATF) for ZF 8HP Gearboxes

ZF LIFEGUARD 8 is the factory-approved ATF for ZF 8HP automatic transmissions. It provides stable friction characteristics, excellent oxidation resistance, and smooth shifting under high load and wide temperature ranges. Ideal for service refills and full overhauls.

Key Features

• OEM-approved fluid for ZF 8HP series (8HP45 / 8HP50 / 8HP55 / 8HP55X / 8HP70 / 8HP75 / 8HP90 / 8HP95)
• Improves shift quality and reduces wear
• High shear stability and thermal resistance
• Anti-foam and corrosion protection additives

How Much Fluid Do You Need?

Actual volume depends on the transmission variant and service procedure (pan-only service vs. dry/empty unit with torque converter drained).

• Typical service refill (pan & filter change): ~4.5–6.0 L
• Full dry fill (overhaul / empty torque converter): ~8.0–9.0 L

Tip: Buy 6 L for a standard pan & filter service, or 9 L for a full rebuild/dry fill. Always check actual level via the ZF temperature-based fill procedure.

Service Notes

• Follow ZF temperature-based filling (vehicle level, fluid ~30–50 °C, fill until slight overflow at correct temp).
• Replace pan/filter and sealing sleeve as required.
• Do not mix with non-approved fluids.

Specs & Approvals

• Product: ZF LIFEGUARD 8 ATF
• ZF Ref / Part No.: S671 090 312 (common reference)
• Packaging: 1L bottles (order quantity per service guidance above)

Compatibility: ZF 8HP gearboxes used in BMW, Audi, VW, Jaguar/Land Rover, Maserati, FCA/Stellantis and others (verify by VIN and transmission label).
