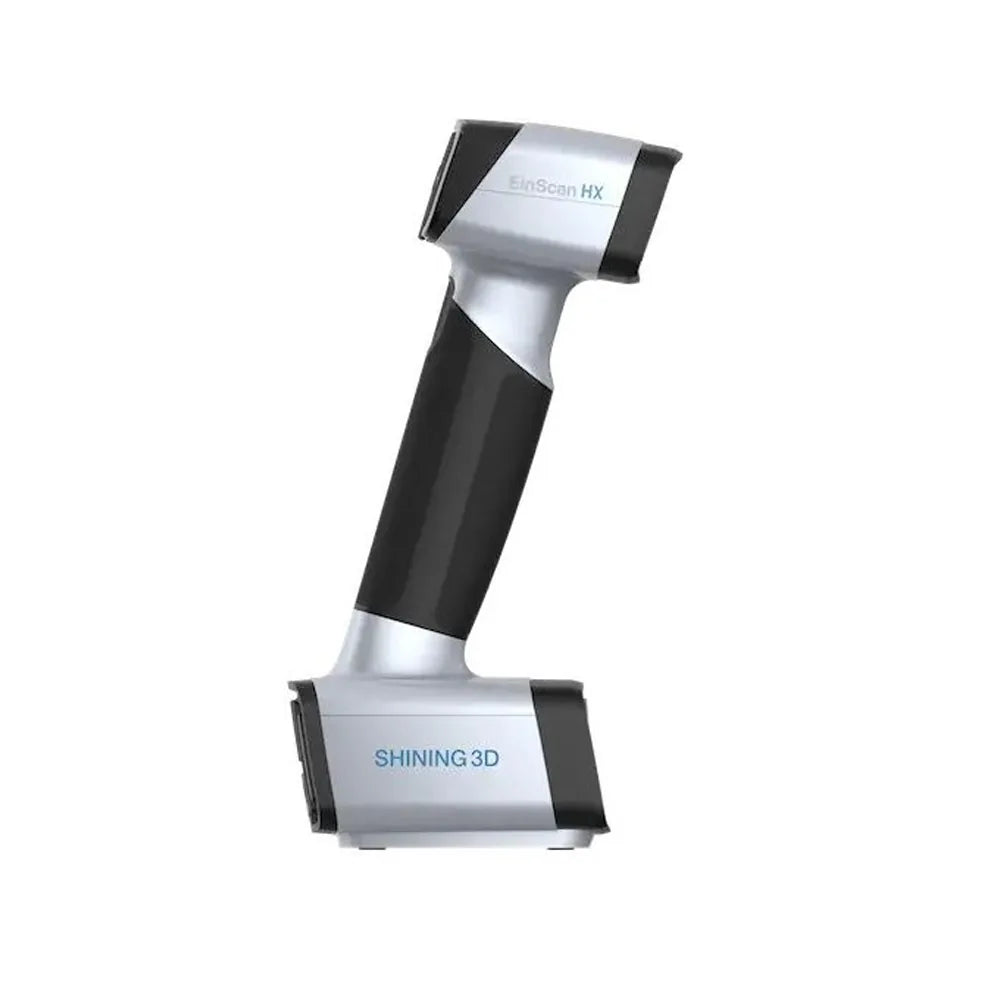

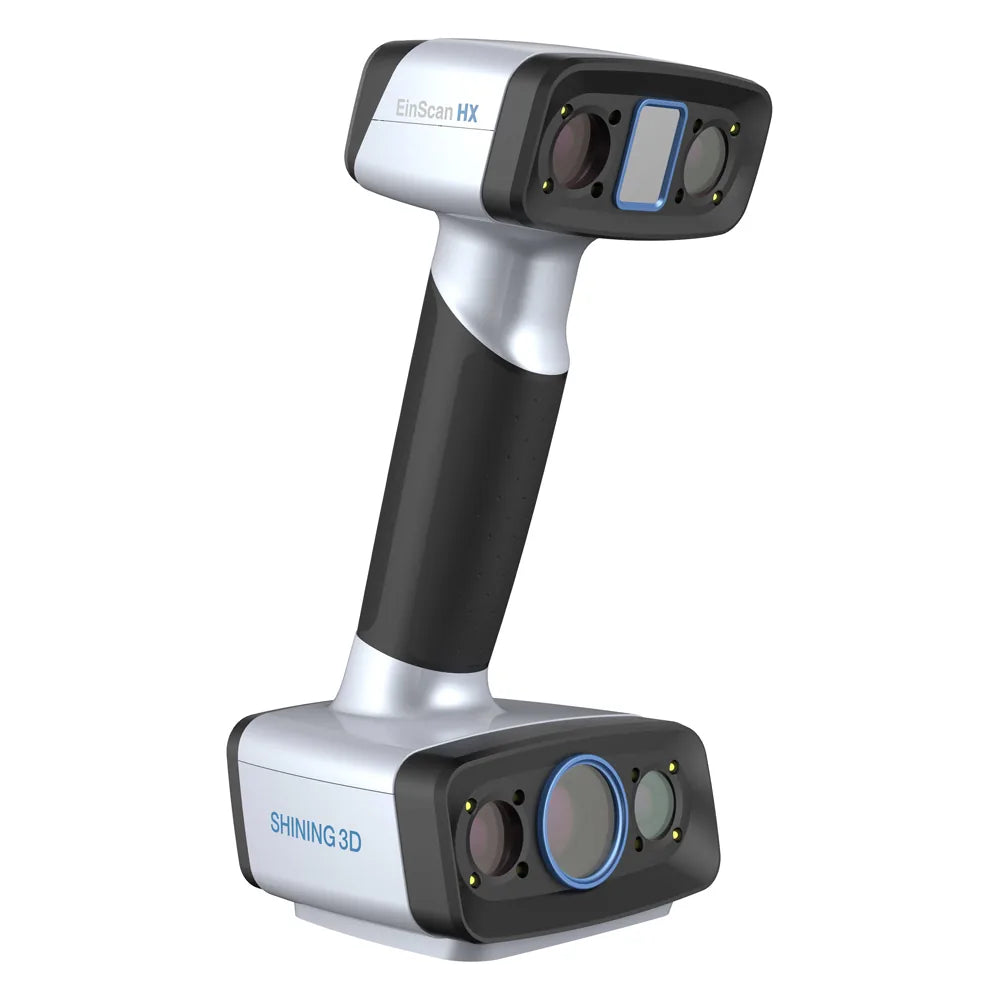

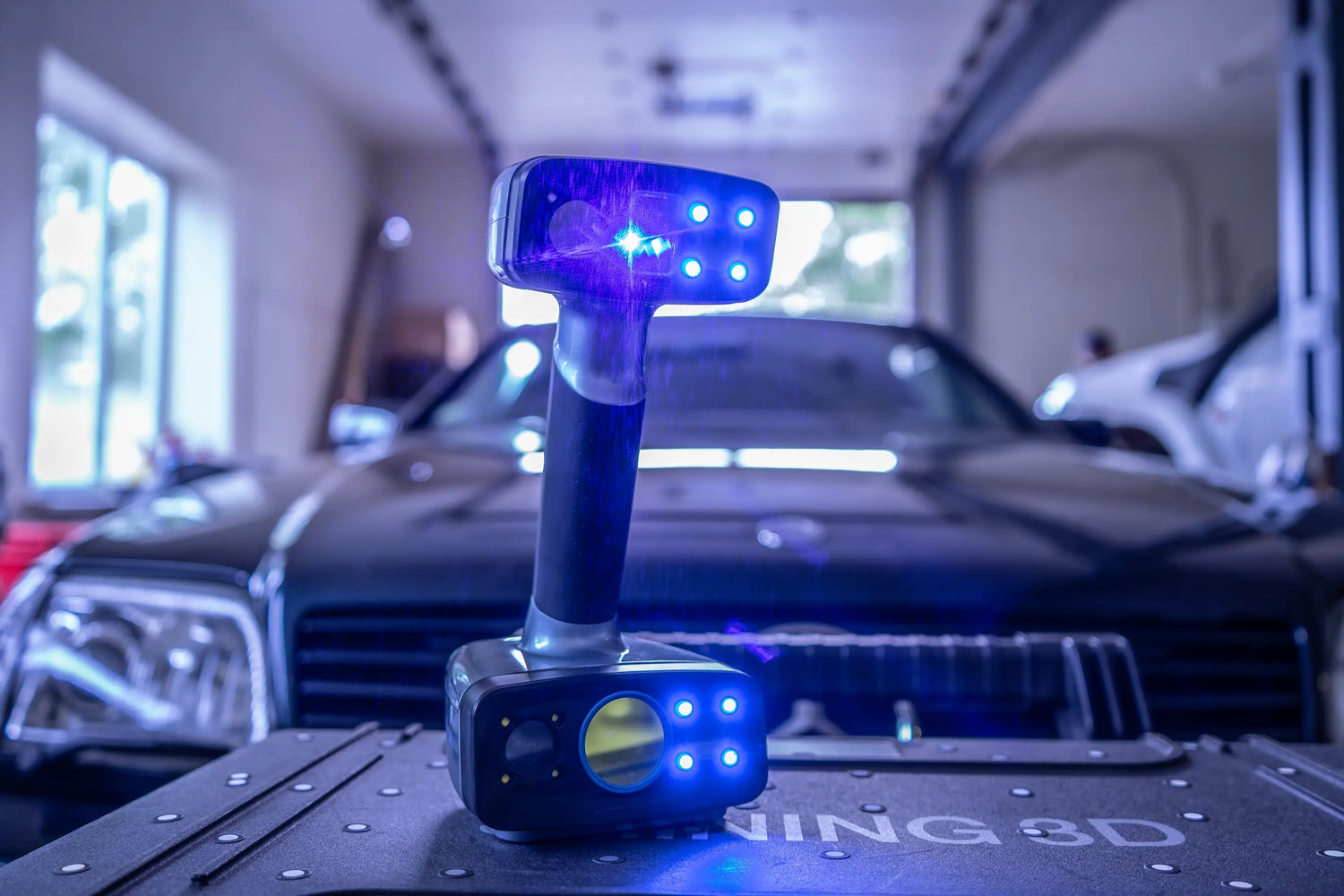

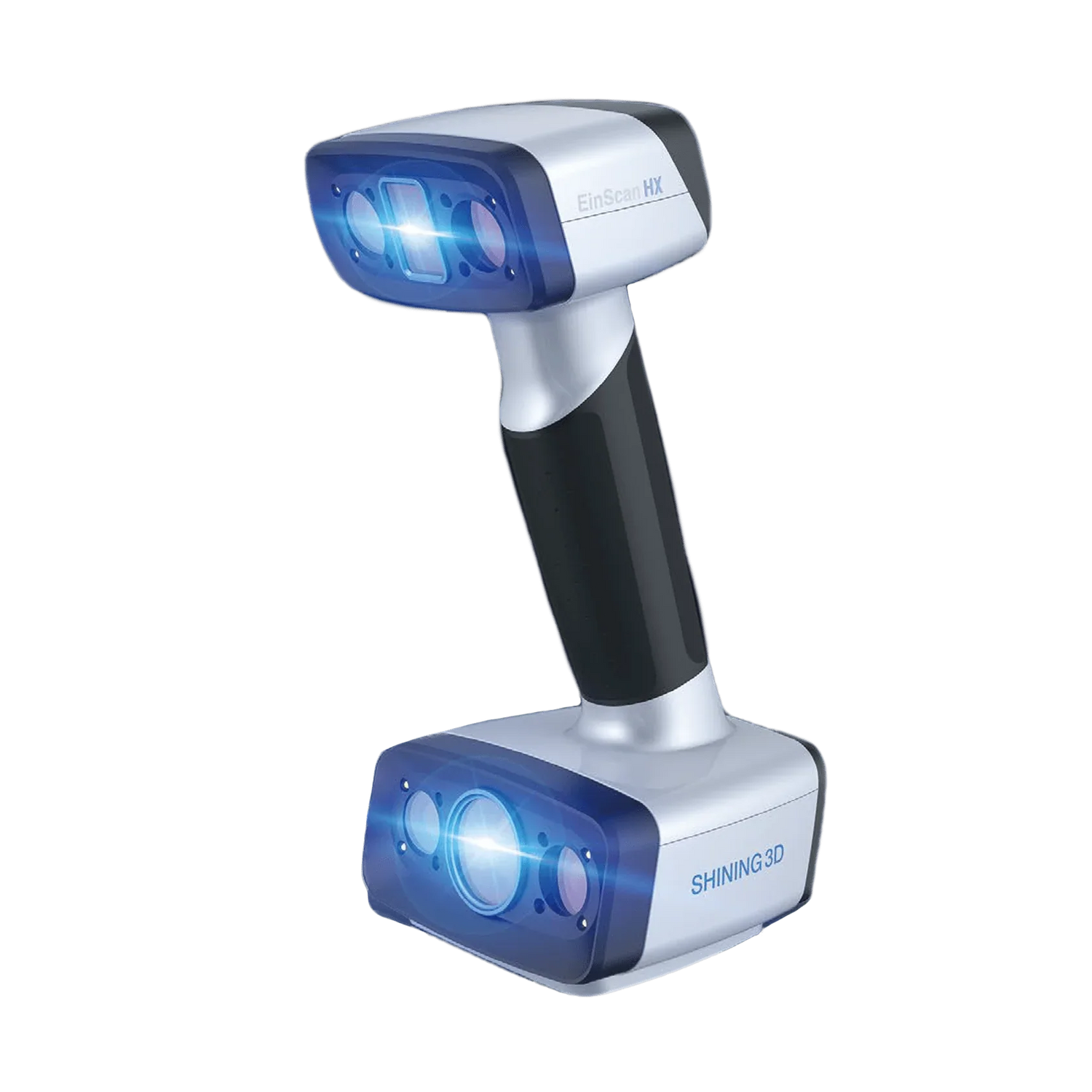

Einscan HX – Hybrid Light 3D Scanner for Versatile Applications

The Einscan HX combines blue laser and LED structured light technologies, delivering a versatile 3D scanning solution for a wide range of applications. Designed for accuracy, speed, and adaptability, it performs exceptionally well on challenging surfaces and in industrial environments.

Key Features

• Hybrid Light Source – Blue laser for high-accuracy scanning of reflective and dark surfaces, LED structured light for rapid 3D data capture.
• High Precision – Achieves up to 0.04 mm accuracy in laser mode for detailed engineering work.
• Fast Scanning Speed – Up to 1,200,000 points per second in rapid scan mode.
• Versatile Surface Handling – Effectively scans metallic, dark, and complex surfaces without extensive preparation.
• Portable & Ergonomic – Lightweight design for comfortable, all-day use.

Technical Specifications

• Accuracy: Up to 0.04 mm (Laser mode)
• Volumetric Accuracy: 0.05 mm + 0.06 mm/m
• Scan Speed: Up to 1,200,000 points/s
• Light Source: Blue laser & LED structured light
• Working Distance: 470 mm

Applications

• Reverse engineering
• Quality control and inspection
• Product design and development
• Cultural heritage preservation
• 3D printing and rapid prototyping

Note: The hybrid system automatically adapts to surface types, making it an all-in-one scanner for industrial, design, and creative applications.
