BMW M57 Swap Wiring Harness

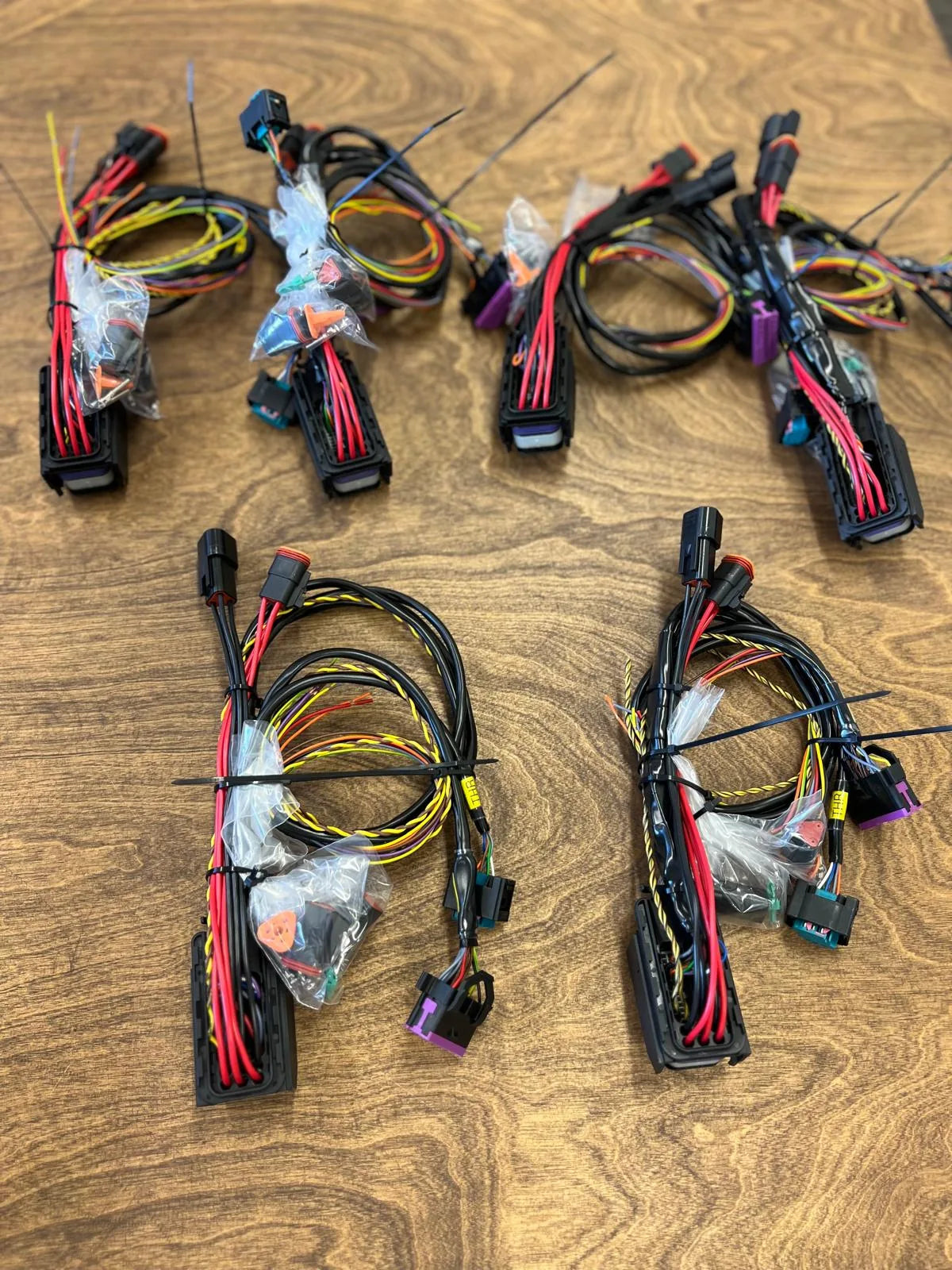

BMW M57 Swap Wiring Harness for Standalone Engine Conversion Projects

This simplified BMW M57 swap wiring harness is designed to make it easier to start and operate a BMW M57 engine outside of the original BMW vehicle. It is intended for engine swap, retrofit, off-road, overland and custom conversion projects where the M57 ECU needs to run in a standalone or semi-standalone setup.

The harness is available for BMW M57 D1 engines with DDE4 ECU and BMW M57N engines with DDE5 or DDE6 ECU variants. Because ECU versions and project requirements can differ, compatibility should always be confirmed before ordering.

Available ECU Versions

• BMW M57 D1 — DDE4
• BMW M57N — DDE5
• BMW M57N — DDE6

Main Connections

• ECU connector integration
• BMW electronic throttle pedal connection
• OBD2 diagnostic port connection
• CAN Bus connection
• Permanent +12V power supply connection (+30)
• ECU ground connection
• OBD2 ground connection
• Engine ON / kill switch input using +12V ignition signal (+15)

Available Signals and Outputs

• Analog RPM signal output
• Analog fuel pump relay signal output
• Analog oil pressure signal connection, where supported by ECU version
• Original BMW fan control support, where supported by ECU version

Important Compatibility Notes

• The analog oil pressure signal is only available on selected ECU versions. On some setups, the oil pressure signal must be taken directly from the engine sensor.
• Original BMW fan control is only supported on certain ECU versions. If your ECU version does not support this function, we recommend using a separate custom PWM fan controller.
• Final wiring configuration depends on the ECU version, engine variant, vehicle platform and project requirements.

Typical Applications

• BMW M57 engine swap projects
• Nissan Patrol M57 conversions
• Off-road and overland vehicle builds
• Standalone M57 engine installations
• Manual and automatic transmission conversion projects
• Custom restomod and diesel performance builds

This wiring harness is a universal conversion product created to simplify the electrical integration of BMW M57 engines in non-BMW vehicles. It provides the core power, ECU, diagnostic, throttle pedal and signal connections required for a clean standalone engine installation.

Before ordering, please confirm your ECU version, engine variant and project setup so the harness can be matched to the correct BMW M57 configuration.
