ComeUp GIO Winch
Description
Description
The COMEUP GIO Series Recovery Winch is a professional-grade self-recovery solution for 4×4 vehicles, pickups, off-road builds, and overland rigs. With a powerful 12V series-wound motor, smooth three-stage planetary gearbox, and IP68 waterproof construction, the GIO series is designed to perform in harsh weather and demanding terrain.
Key Features
- Available in 10,000 lb and 12,000 lb rated line pull
- Heavy-duty 12V DC series-wound motor for high torque and fast line speed
- IP68 waterproof construction for dust and water protection
- Durable three-stage planetary gear train (234.6:1)
- Exclusive brake design with No. 37C device for improved winch control

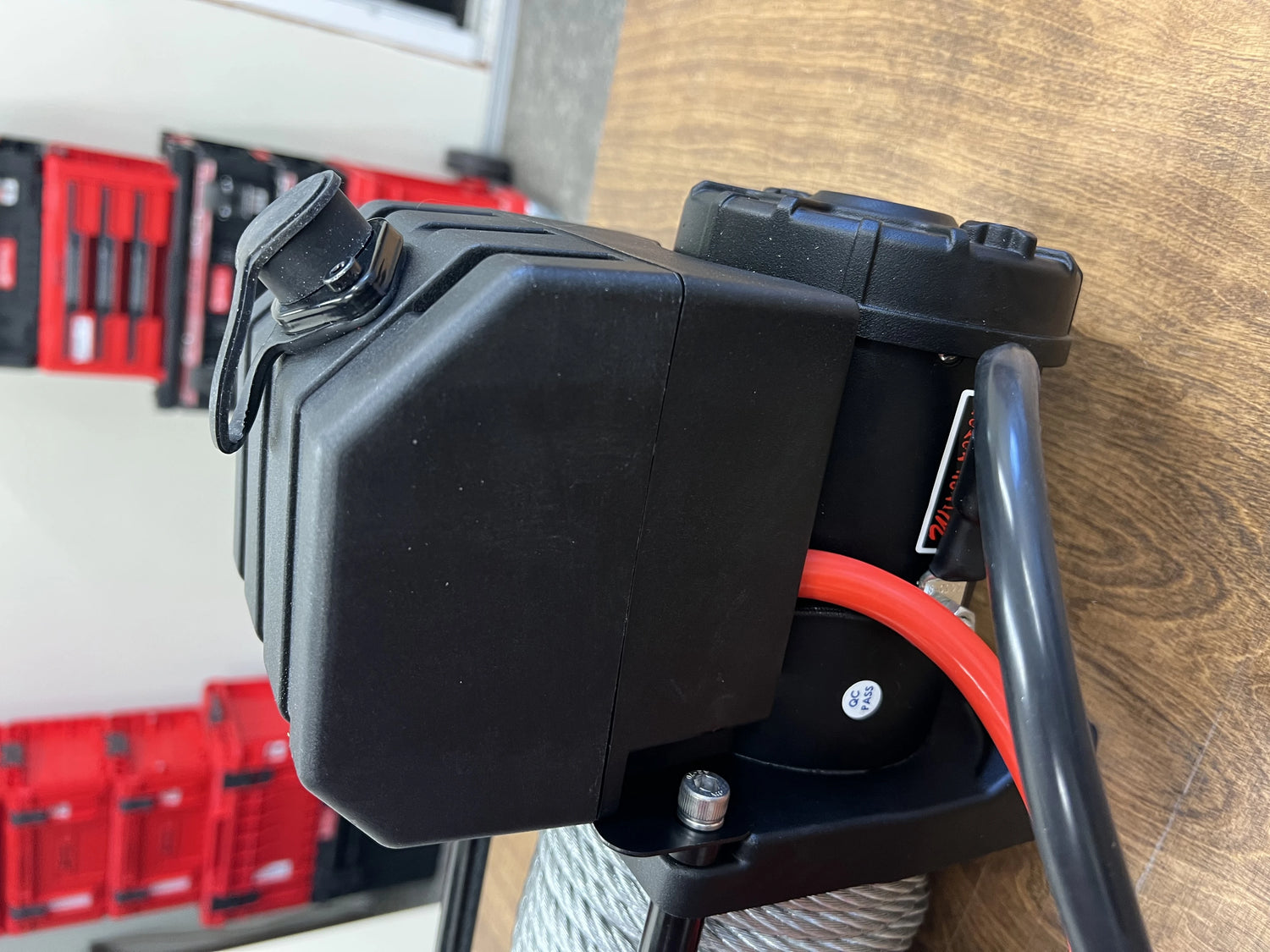

- Compact control pack above motor – relocatable for flexible mounting
- Matte black powder-coated finish for enhanced weather resistance

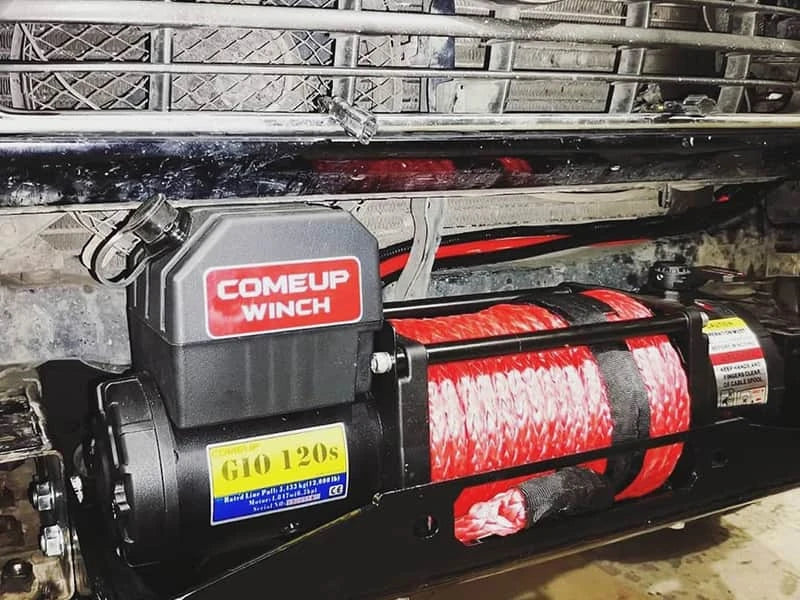

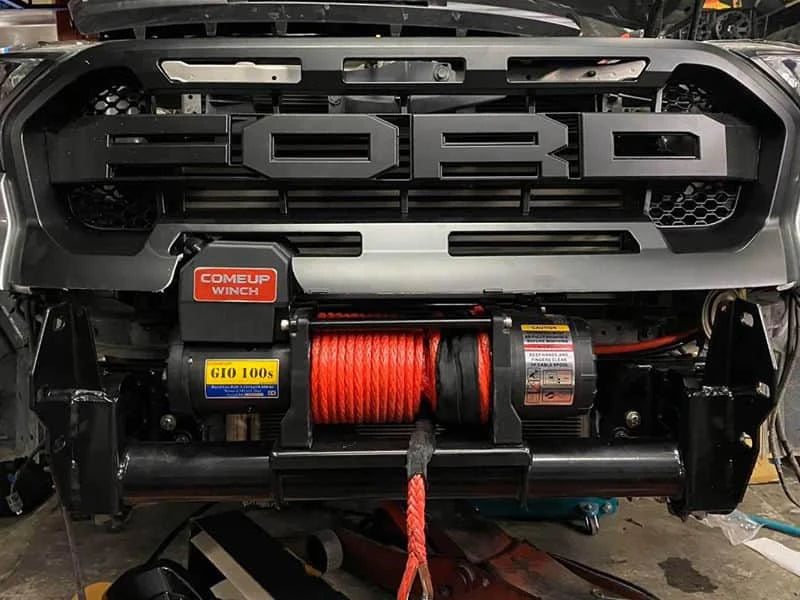

- Foot-forward or foot-down mounting using 254 × 114 mm (10" × 4.5") pattern
- Includes remote control, fairlead, rope with hook, battery leads and handsaver strap
Model Overview – Variants
The GIO Series is available in four main variants, covering both steel wire rope and synthetic rope configurations:
| Model | Rated Line Pull | Rope Type | Rope Size | Part Number | Winch Weight |
|---|---|---|---|---|---|

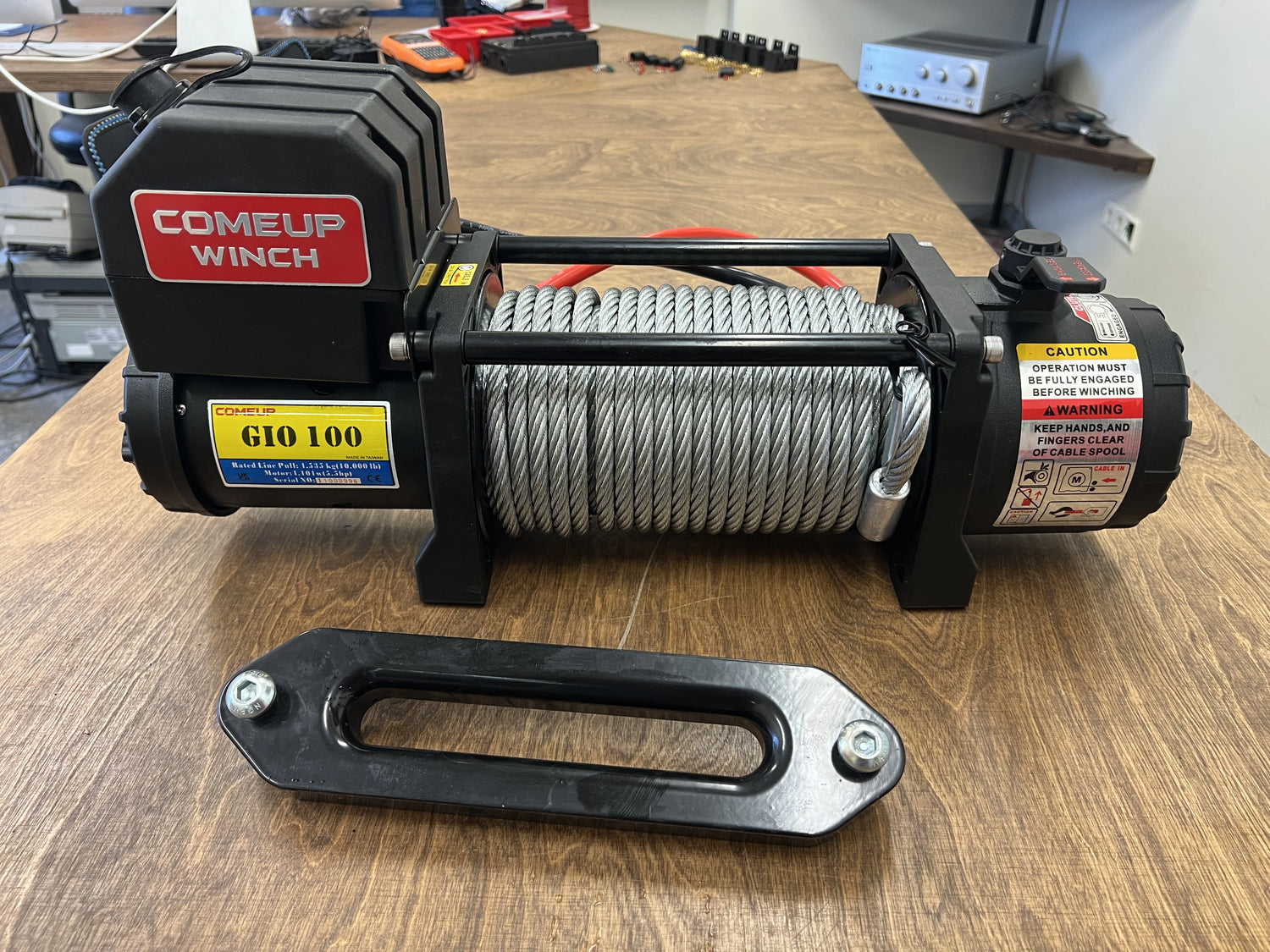

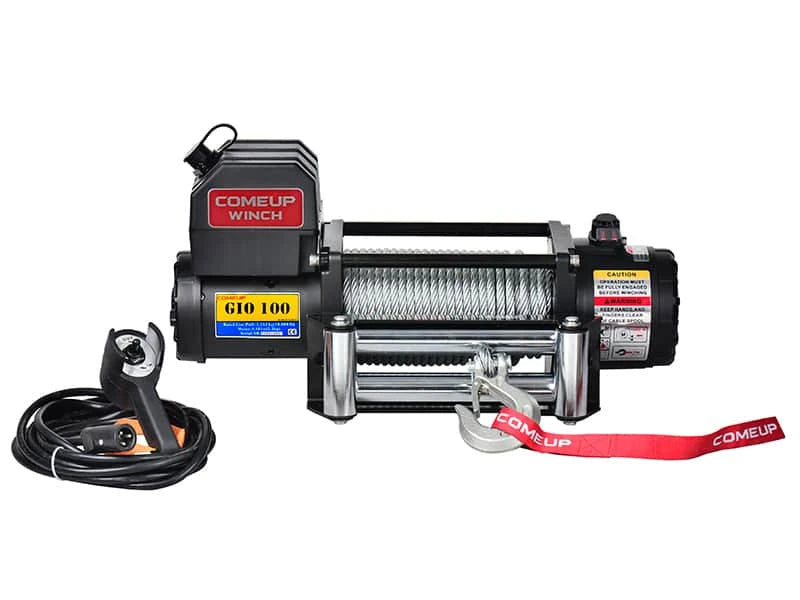

| GIO 100 | 4,535 kg / 10,000 lb | Steel wire rope | 9.5 mm × 26 m | PN 853841 | 35.6 kg |

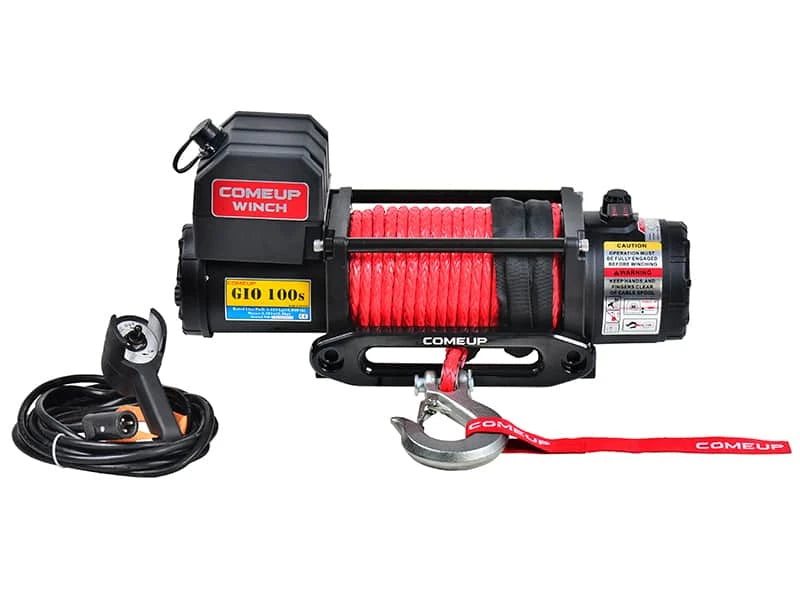

| GIO 100s | 4,535 kg / 10,000 lb | Synthetic rope | 10 mm × 26 m | PN 853839 | 33.7 kg |

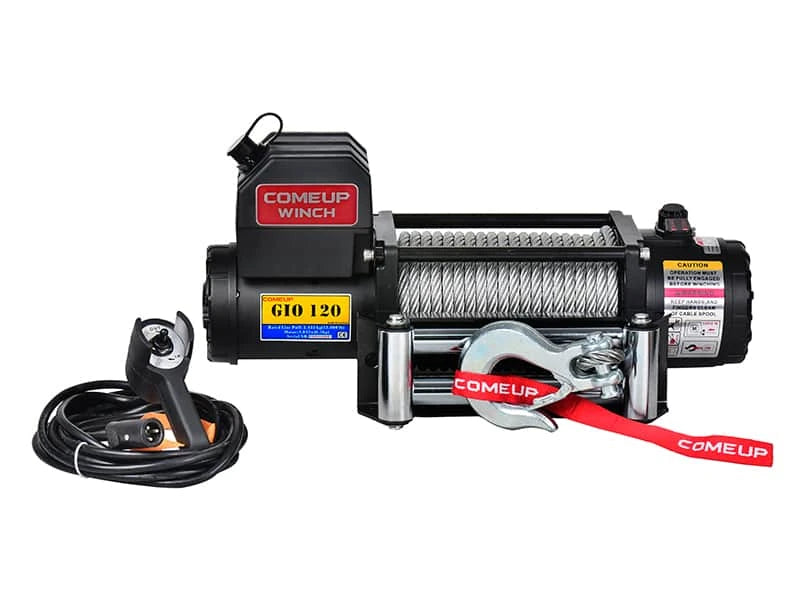

| GIO 120 | 5,443 kg / 12,000 lb | Steel wire rope | 10.3 mm × 25.5 m | PN 853832 | 37.7 kg |

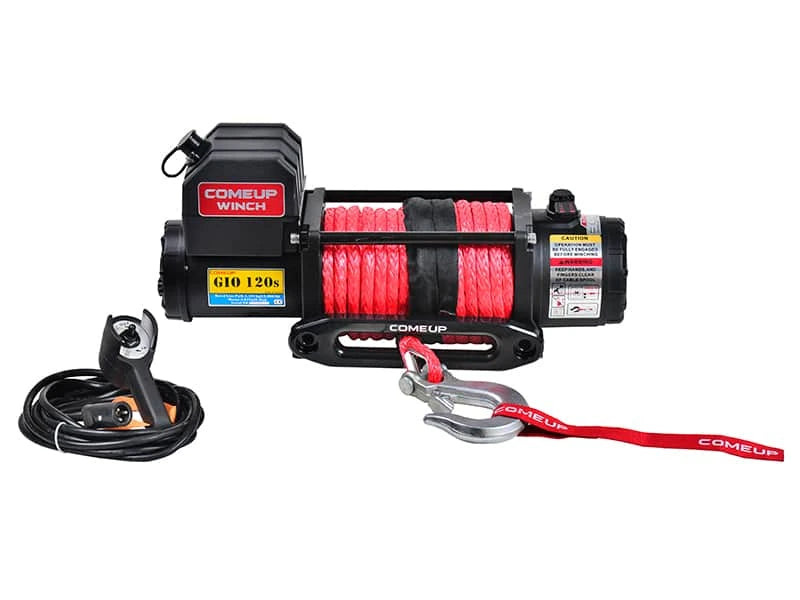

| GIO 120s | 5,443 kg / 12,000 lb | Synthetic rope | 11 mm × 25.5 m | PN 853860 | 35.2 kg |
Shared Technical Construction

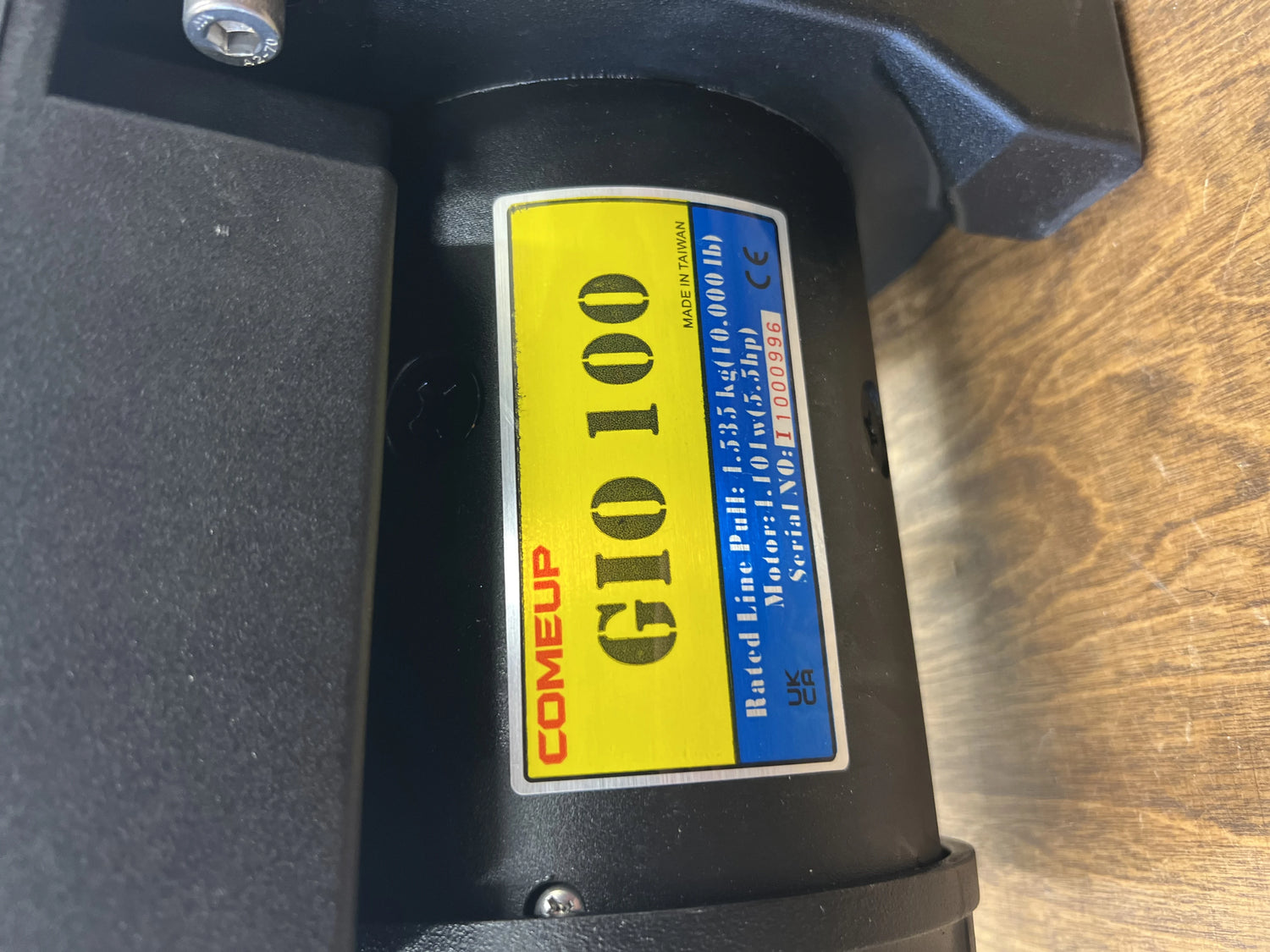

- Motor: 12V DC series-wound (5.5–6.5 hp)
- Gear train: 3-stage planetary, 234.6:1 ratio

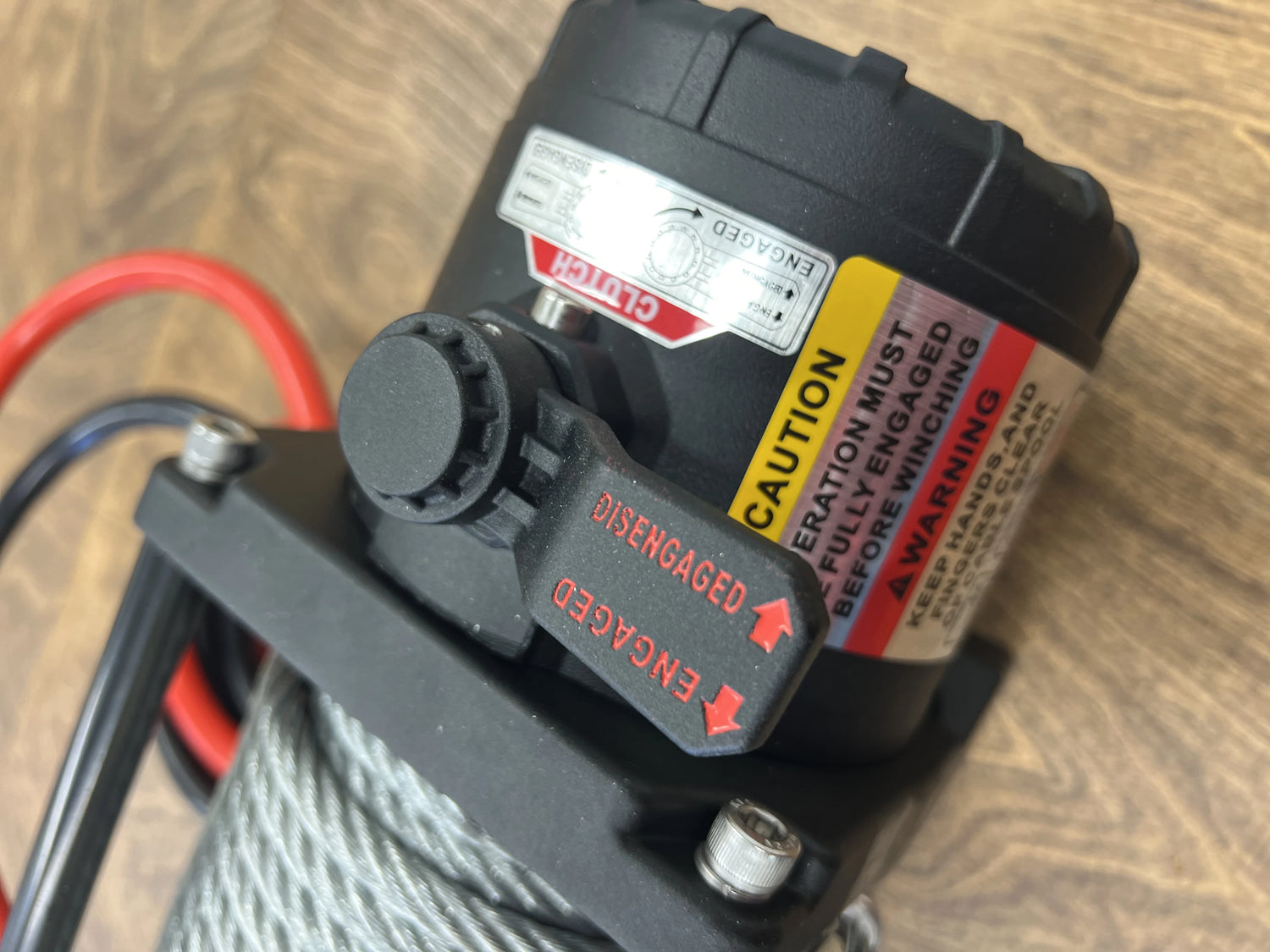

- Clutch: Rotating ring gear (freespooling)
- Brake: Exclusive internal brake design with No. 37C device
- Winch construction: Aluminum die-cast housings with steel drum

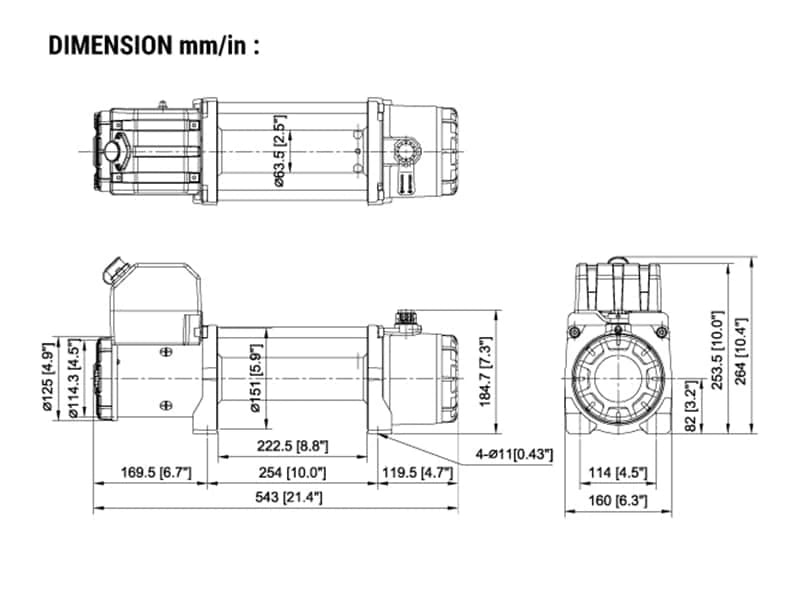

- Drum size: 63.5 mm × 222.5 mm
- Control: Waterproof remote with 5 m (17') cord
- Mounting bolt pattern: 254 mm × 114 mm
- Mounting: Foot-forward or foot-down
- Finish: Matte black powder-coated
- Waterproof rating: IP68
Standard Accessories (All Models)
- Roller fairlead (steel rope) or hawse fairlead (synthetic rope)
- Waterproof remote control with 5 m (17') cord
- Steel or synthetic rope with clevis hook
- 1.8 m (6') 2-gauge battery leads
- Handsaver strap
Performance – Line Speed & Current Draw (12V, 1st Layer)
| Line Pull | Line Speed | Current Draw |
|---|---|---|
| No load | 7.8–8.3 m/min | 45 A |
| ~1,100–1,300 kg | 4.0–4.5 m/min | 110–120 A |
| ~2,200–2,700 kg | 3.3–4.0 m/min | 165–200 A |
| ~3,400–4,000 kg | 3.1–3.5 m/min | 220–260 A |
| Full load (10,000–12,000 lb) | 2.7–2.9 m/min | 310–340 A |
Rope Capacity by Layer
| Layer | Rated Pull | Total Rope on Drum |
|---|---|---|
| 1st | 4,535–5,443 kg | 4.6–5.3 m |
| 2nd | 3,598–4,188 kg | 10.5–11.9 m |
| 3rd | 2,982–3,404 kg | 17.8–19.9 m |
| 4th | 2,547–2,867 kg | 25.5–26 m |
Safety Notes
- The winch is not intended for lifting or moving people.
- Rated line pull is based on the first layer of rope.
- Always keep at least five wraps of rope on the drum during operation.
