ComeUp DV6 Winch

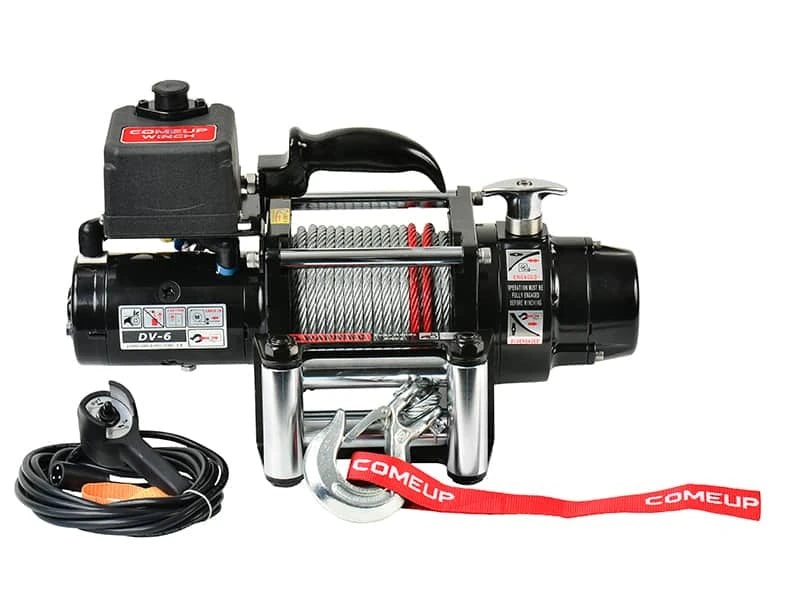

COMEUP DV-6 2.7T Self-Recovery Winch

The COMEUP DV-6 delivers 2,722 kg (6,000 lb) of pulling power with a durable 3-stage planetary gear train and a waterproof 12V series wound motor. Compact and lightweight design allows easy front mounting on vehicles. Ideal for off-road recovery and expedition use.

Key Features

• Heavy-duty 12V series wound motor with superior torque and fast line speed
• Compact design, easy for front mounting
• Submersible sealed contactor allows high amp operation and longer duty cycles
• Ergonomic T-handle engages free spool clutch rapidly
• Automatic full-load cone brake outside drum prevents slippage
• Optional 2” rear receiver and quick connector wiring kits
• Complies with CE Machinery Directive 2006/42/EC and CE EMC Directive 2014/30/EU

Specifications

• Rated line pull: 2,722 kg / 6,000 lb single line
• Motor: 2,390 W / 3.2 hp 12V series wound
• Gear ratio: 3-stage planetary 216:1
• Clutch: Rotating ring gear (freespooling)
• Brake: Automatic, full-load CBS (Cone Brake Structure)
• Winch construction: Aluminum die-cast housing with steel drum
• Drum size: Std 63.5 mm x 125.5 mm, Long 63.5 mm x 227 mm
• Rope type: Galvanized aircraft A7 x 19
• Rope length: Std 7.1 mm x 24.4 m, Long 7.1 mm x 30.5 m
• Mounting bolt pattern: Std 152.4 mm x 114 mm, Long 254 mm x 114 mm
• Control: Waterproof remote w/ 5 m (17') cord

Line Speed & Amp Draw (1st layer)

Standard Accessories

• Wire rope with clevis hook
• Remote control w/ 5 m (17’) cord
• Roller fairlead
• Mounting hardware
• Control box w/ handle for Std drum (PN 854750)
• Control box for Long drum (PN 854760)

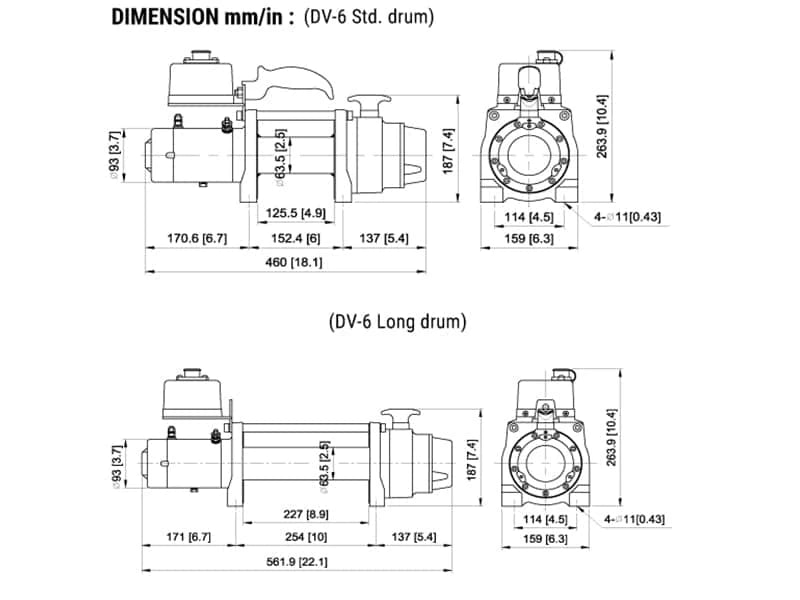

Dimensions & Weight

• Std drum: 22.8 kg / 50.3 lb (winch), 28.4 kg / 62.6 lb (gross), 505 x 210 x 340 mm
• Long drum: 25.2 kg / 55.6 lb (winch), 32.8 kg / 72.3 lb (gross), 672 x 210 x 390 mm

Warning: Not for lifting or moving personnel. Rated line pull is based on first rope layer. Maintain at least 5 wraps on drum.
